Tactical Clothing Factory Material Selection – How to Spot Counterfeit YKK Zippers, Duraflex Buckles, and Coats Sewing Thread
May 12, 2026
1. Introduction: Counterfeit Trims – The Most Overlooked Cost Trap for Tactical Clothing Factories
In tactical garment production, fabric receives the most attention, while trims such as zippers, buckles, and sewing thread are often neglected. However, counterfeit trims are the most common hidden cost trap for tactical clothing factories.
Why are tactical clothing factories vulnerable to fake trims? Three reasons:
1. Low attention: Zippers, buckles, and thread do not represent the main area of the finished product. Buyers often only check appearance without in‑depth testing.
2. High sophistication of fakes: Counterfeits look very similar to genuine products and are not easily detected at first. Problems only surface after bulk production and shipment.
3. Difficult recourse: Trim suppliers are often intermediaries; tracing the source of a quality problem is hard once it occurs.
The consequences of using fake trims are often disastrous:
Counterfeit YKK zippers': tooth loss, slider jamming or self‑opening, rust in salt spray tests – leading to customer returns.
Counterfeit Duraflex buckles**: brittle breakage, slipping adjustment strap, UV‑induced powdering – endangering user safety (especially on tactical vests and backpacks).
Counterfeit Coats thread**: insufficient strength, high thread breakage rate, poor colorfastness – resulting in full‑batch garment rework, with losses far exceeding the trim price difference.
This article provides actionable inspection methods for these three trims: 3‑5 quick visual checkpoints per trim, comparison tables of key parameters vs. genuine standards, and an incoming inspection checklist to intercept counterfeits at the receiving stage.
2. Identifying Counterfeit YKK Zippers
2.1 Basic knowledge of YKK zippers (for reference)
YKK is the world's largest zipper manufacturer. Common models used in tactical clothing include :size #5, #8, #10 metal zippers(brass or black nickel finish) and molded plastic zippers(for windproof outerwear).

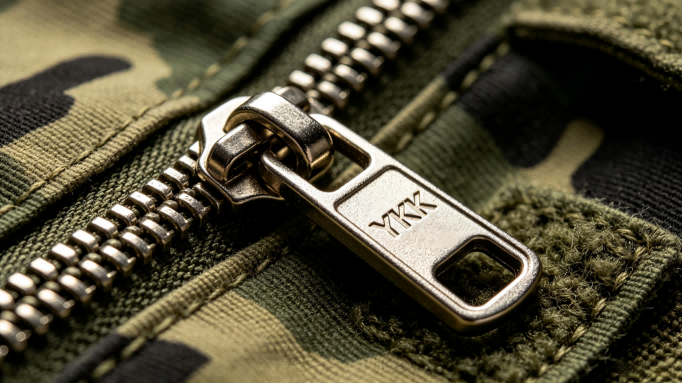

Key genuine feature: A raised 'YKK' logo on the back or side of the slider, with sharp, clean lettering and no burrs.

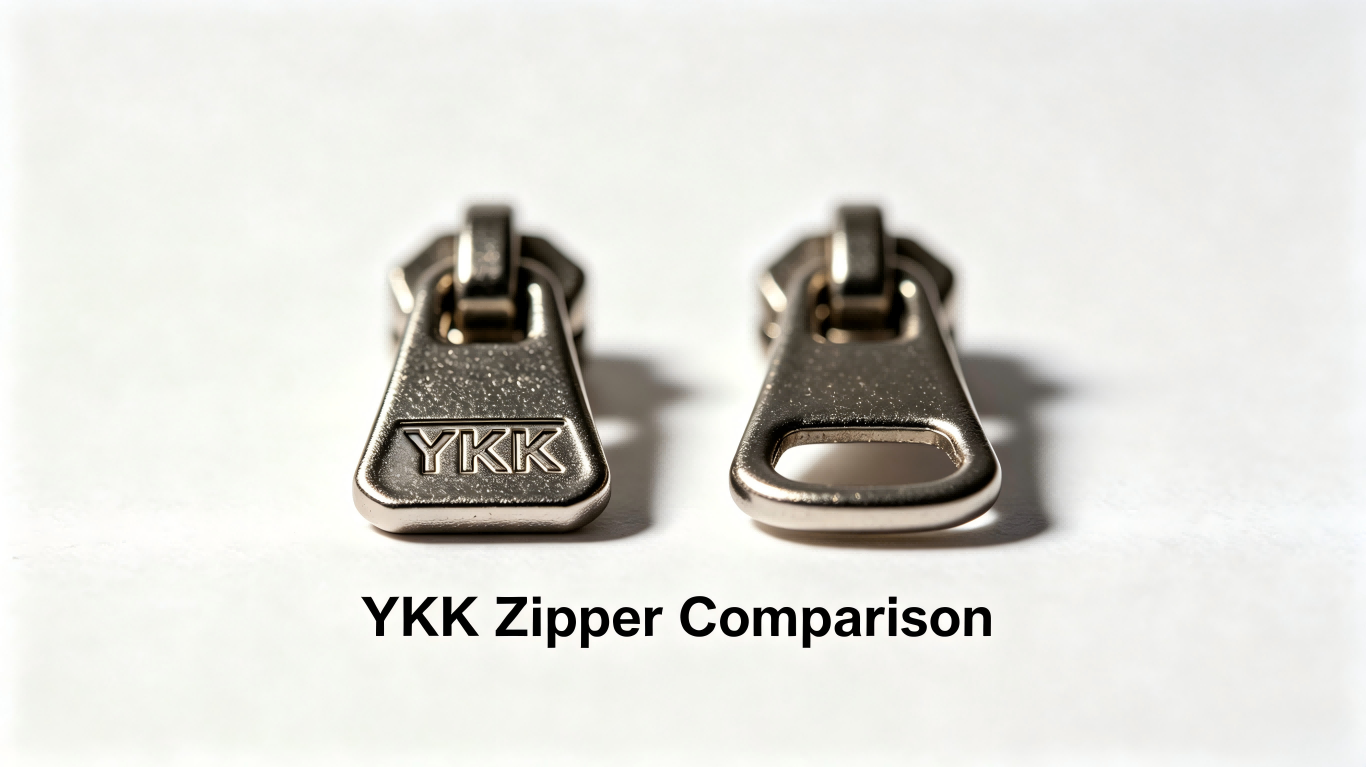

2.2 Slider comparison table
| Checkpoint | Genuine YKK feature | Common fake feature |
| Logo font | "YKK" strongly three‑dimensional; Y's upper part and K's vertical stroke show clear thickness variation | Flat, blurred, or merged letters-or printed, not cast |
| Slider material | Zinc alloy die‑cast, even plating (black nickel / gunmetal / matte nickel), no bubbles | Stamped steel (lightweight, magnetic) or poor zinc alloy; plating peels easily |
| Side engraving | Some models have "YKK" or a model code (e.g., 5GN, 8GN) on the side | No engraving or crude engraving |
| Spring cover | Moderate spring tension, crisp open/close, no sticking | Spring too weak or too stiff; cover wobbles |
| Pull tab | Smooth chamfered edges, centered hole, flat riveting point | Burrs, off‑center hole, protruding or cracked rivet |
2.3 Chain (tape and teeth) comparison
| Checkpoint | Genuine YKK | Fake |
| Tape material | Polyester or nylon, tight weave, hot‑cut edges, no fraying | Loose weave, frayed edges or burnt/yellowed cut |
| Metal teeth | Full‑shaped teeth, even spacing, plating covers tooth base | Flat or collapsed teeth, uneven spacing, exposed white base metal or rust |
| Molded teeth | Translucent, smooth engagement, crisp "click" when zipping | Opaque, dragging or too loose engagement |
| Locking strength | Requires significant force to pry open laterally; strong lateral lock | Easily pulled apart or slider fails to lock |
2.4 Salt spray test (quick validation)
Method: Immerse a closed zipper in 5% salt water for 24 hours, then remove and air-dry.
Genuine: Slight discoloration on metal parts allowed, but no red rust.
Fake: Obvious rust spots; steel sliders show flaky red rust.
2.5 Packaging and traceability
Genuine YKK industrial packaging (carton or plastic bag) is printed with **lot number, production date, and model barcode** – traceable through YKK official or regional distributor channels.
Counterfeits have no packaging, poor‑quality printing, incorrect lot number format, or no traceability at all.
One-sentence reminder for YKK zipper procurement: Never buy zippers without a clear brand logo. Genuine zinc alloy sliders are not magnetic -carry a small magnet for quick screening.
3. Identifying Counterfeit Duraflex Buckles
3.1 Overview of Duraflex product features
Duraflex is a high‑end brand of buckles for tactical gear, widely used on tactical vests, backpacks, belts, and MOLLE systems.

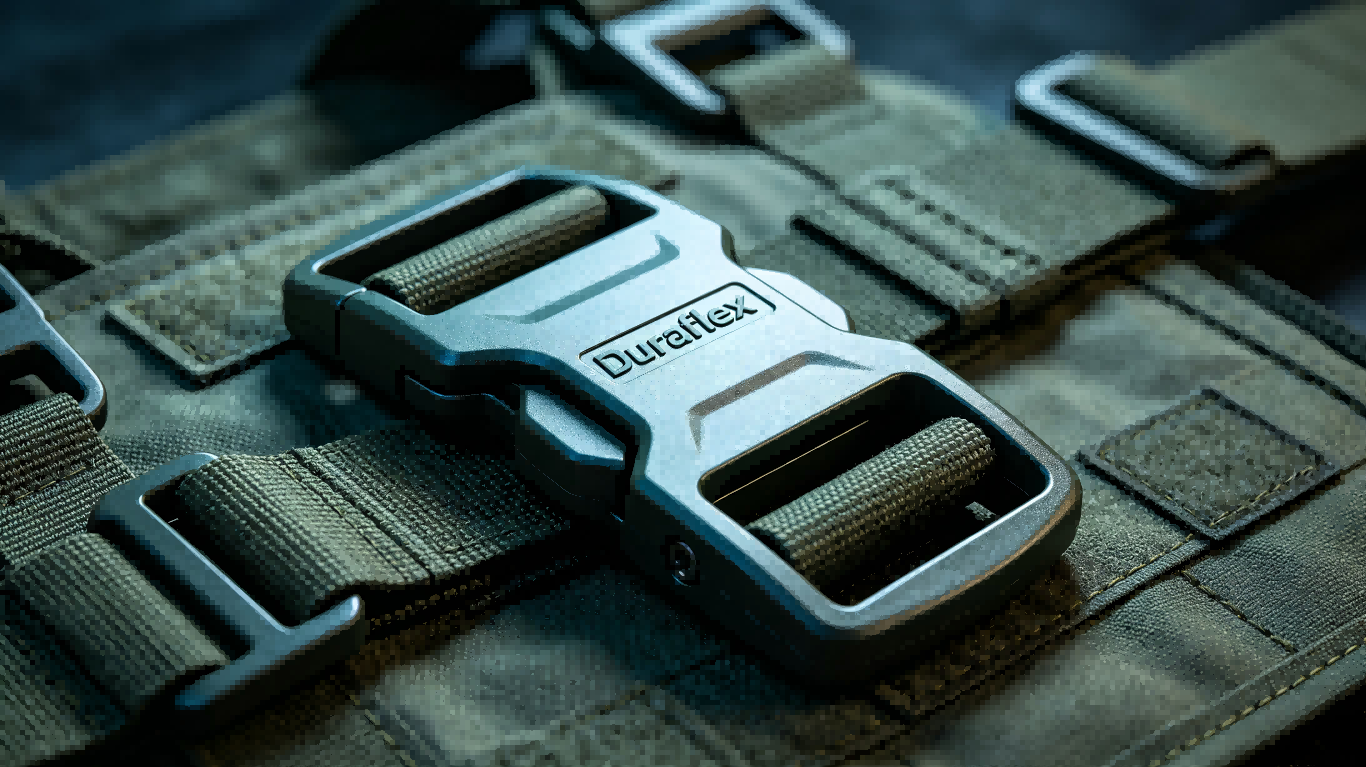

Key genuine feature: Raised 'Duraflex' or 'DF'lettering on the back of the buckle, plus a mold cavity number.
3.2 Side‑release buckle inspection focus
| Checkpoint | Genuine Duraflex | Common fake |
| Brand mark | "Duraflex" on both male and female halves, clear lettering, no flash | No mark, misspelling (e.g., "Duraflexx"), or blurred letters |
| Material | POM or nylon, rigid feel, crisp sound when tapped | Recycled plastic or ABS, soft feel, dull sound |
| Spring arms | Firm press with strong, quick return; no permanent deformation | Weak or slow return; distortion after a few presses |
| Latching feel | Distinct "click" upon insertion; play ≤0.5 mm when locked | No click or too tight/loose; noticeable wobble |
| Release button | Anti‑slip texture, short travel (~2‑3 mm) | Shallow texture, long travel or sticking |
| Mold parting line | Fine line (≤0.1 mm), no burrs | Thick line, visible flash or rough edges |
3.3 Ladder lock / loop lock inspection

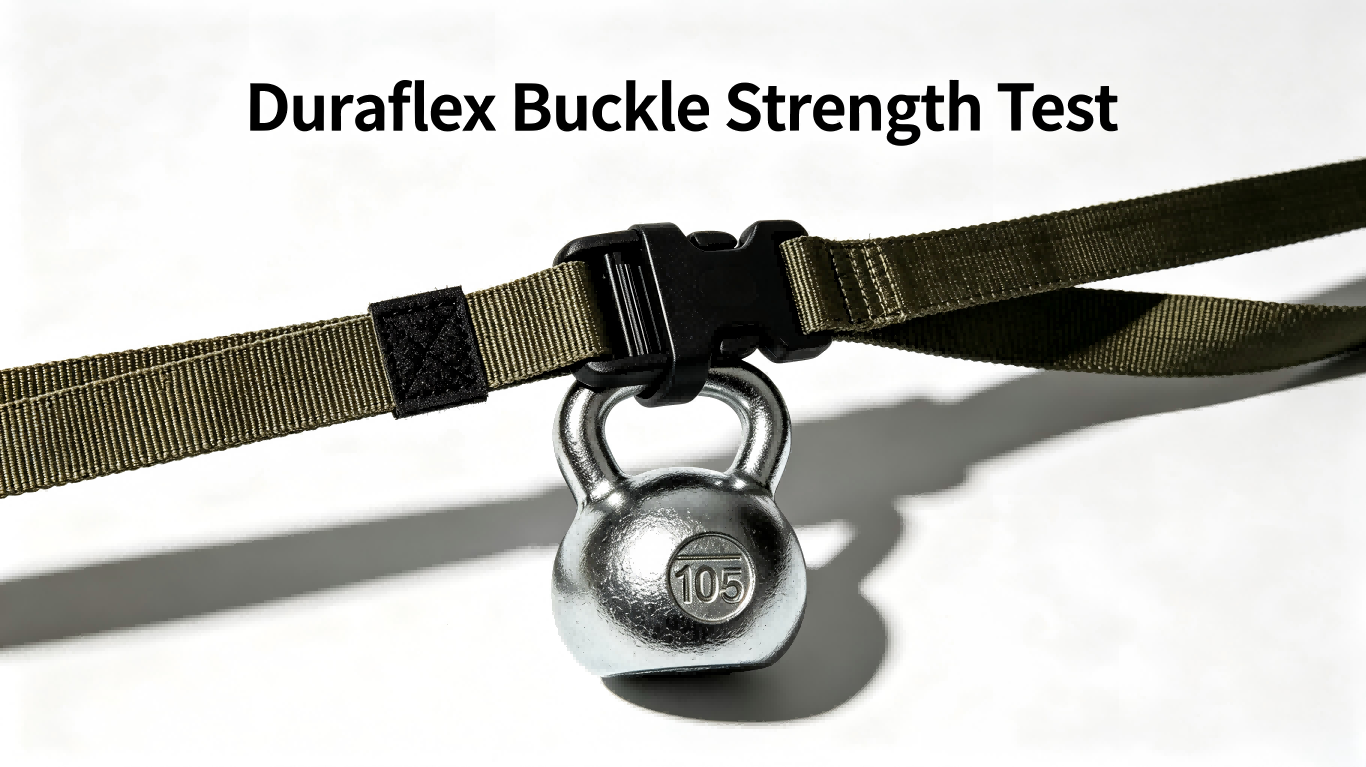

Load test: Thread webbing through the buckle, hang a 5 kg weight for 24 hours.
Genuine: No slippage, no deformation.
Fake: Webbing slips (poor tooth grip) or buckle cracks.
Tooth profile: Genuine-sharp, evenly spaced inner teeth. Fake-blunt, missing, or uneven teeth.
3.4 UV resistance quick comparison (for outdoor tactical products)
After 200 hours in a xenon arc weatherometer or direct sunlight:
Genuine: Only slight fading; remains tough, does not break when bent forcefully.
Fake: Becomes brittle, surface cracks appear, breaks easily under forceful bending.
3.5 Packaging and authorization
Genuine Duraflex usually comes in plastic bags with stickers indicating model, color code, and batch number.
For large purchases, require the supplier to provide a Duraflex authorized distributor certificate. "Factory surplus" or "parallel import" without proper authorization is high risk.
One-sentence reminder for Duraflex buckle procurement: The spring arms are the soul of the buckle-reject any with weak or slow return. Although the 5 kg load test takes time, testing 3-5 pieces per batch can prevent major failures.
4. Identifying Counterfeit Coats Sewing Thread

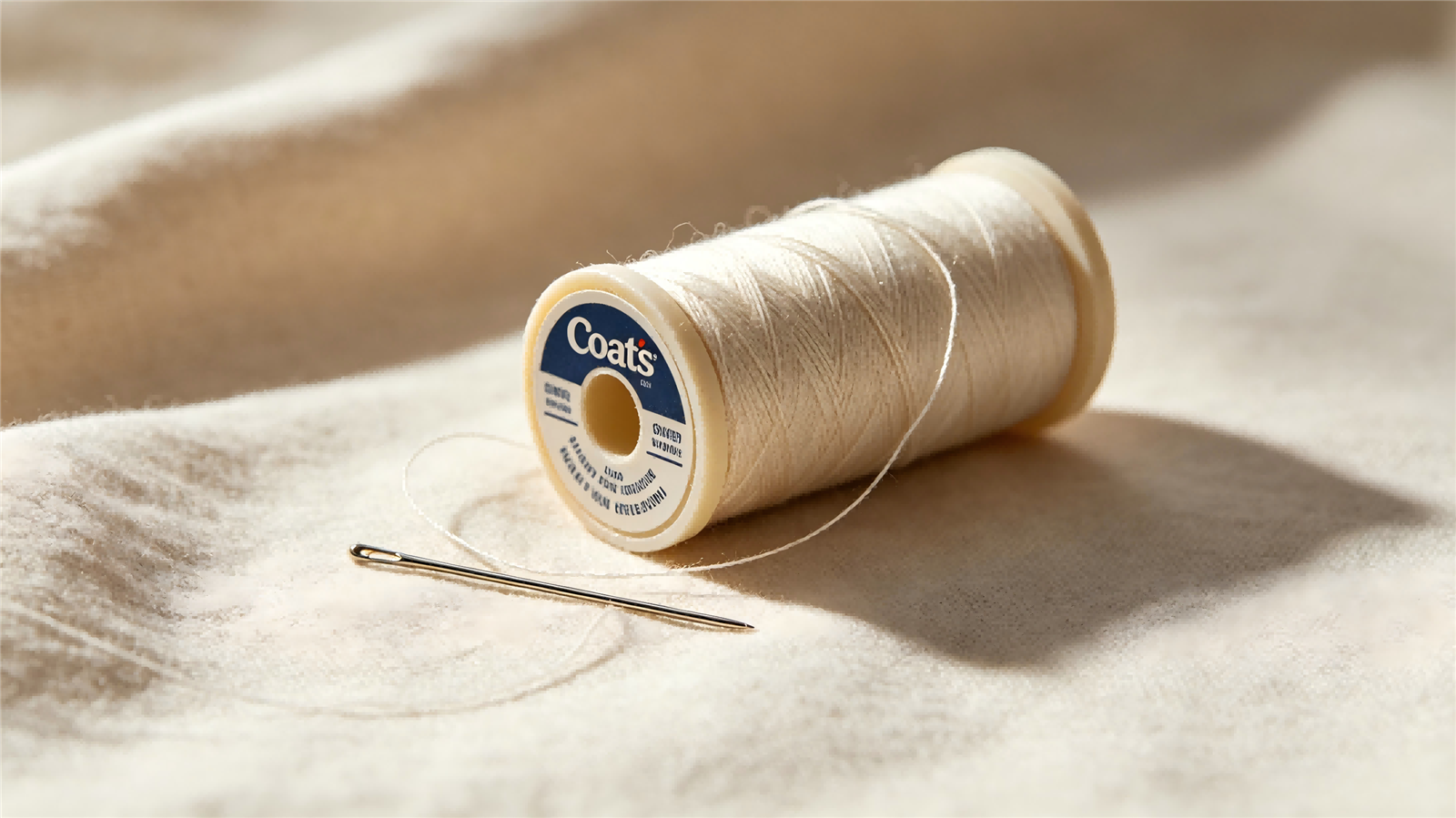

4.1 Common Coats thread models (for tactical clothing)
Coats T70 (Tex 70)** : General heavy‑duty thread, suitable for nylon webbing, canvas, and stress seams of tactical vests.
Coats T45 (Tex 45)** : Medium weight, suitable for main seams and side seams of tactical pants.
Coats Bonded Nylon**: Coated surface for abrasion and heat resistance – the preferred thread for tactical clothing.
4.2 Physical parameter comparison table
| Checkpoint | Genuine Coats | Common fake |
| Cone label | Front: "Coats" + model + Tex number; back: country of origin, production date | No label or poor printing, no production info |
| Thread surface | Bonded – even matte coating, smooth to touch | No coating or glossy coating (waxed imitation), rough feel |
| Diameter uniformity | Consistent diameter from start to end of cone, no sudden changes | Irregular thickness, noticeable fuzziness |
| Breaking strength (spot test) | T70 bonded nylon ≥35 N | Typically ≤25 N, easily broken by hand |
| Heat resistance (high‑speed sewing) | Continuous sewing for 30 min – no carbon buildup at needle eye, no strength loss | Blackening at needle eye, frequent thread breaks |
| Colorfastness (rubbing) | Dry rub: 4‑5, wet rub: 4 | Obvious bleeding (especially black) |

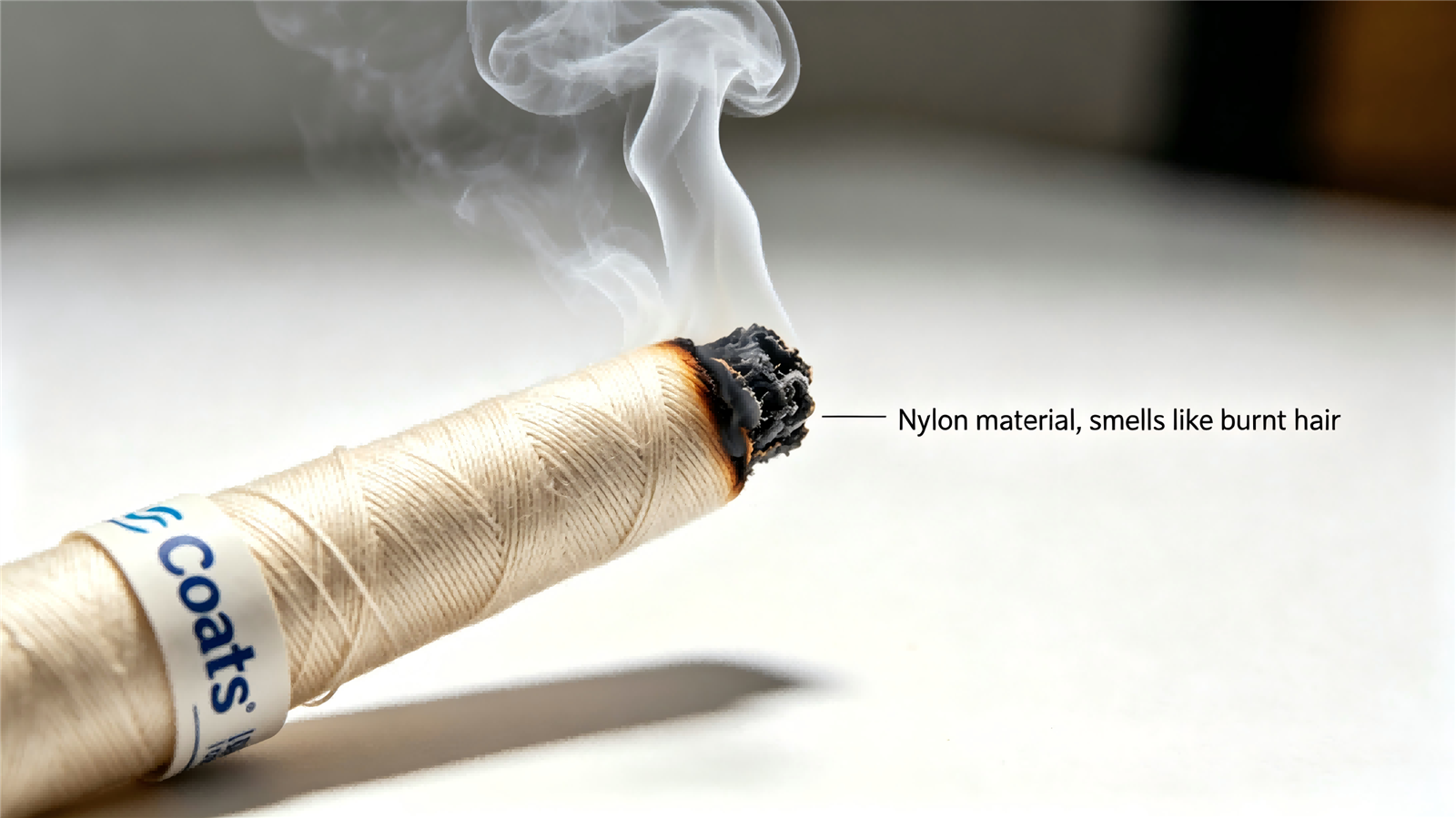

4.3 Burn test quick identification (nylon vs. polyester)
Coats bonded nylon is primarily Nylon 66. A quick burn test can confirm:
Genuine nylon: Melts and shrinks, white smoke, smell of burnt hair, residue is a hard bead.
Fake (polyester) : Black smoke, residue is a hard lump, no hair smell (sometimes sweet smell).
Note: Tactical clothing typically requires nylon thread (good elasticity, abrasion resistance). Polyester is brittle and unsuitable for stress areas.
4.4 Packaging and traceability code
Genuine Coats cones have laser inkjet codes or sticker barcodes that can be verified through Coats official website or WeChat public account.
Some batches include anti-counterfeit QR codes-scanning shows production info, batch, and sales region.
Counterfeits have no traceability codes, or the QR code leads to a fake verification page.
One-sentence reminder for Coats thread procurement**: Don't be tempted by price alone -be very wary of T70 bonded nylon cones priced below 40 RMB per cone (approx. 5000 m). Perform the burn test and hand‑pull strength test on every incoming batch.
5. Incoming Inspection Checklist (Ready to Use)

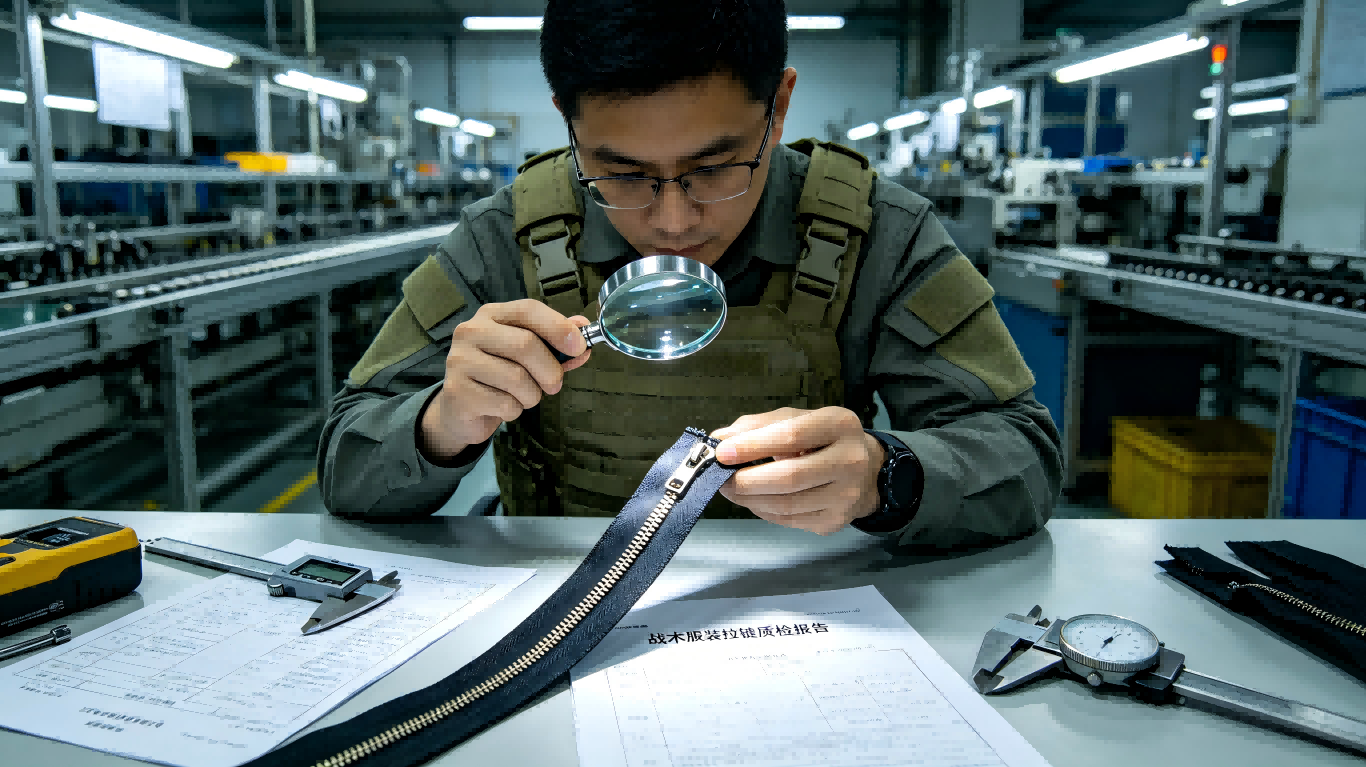

The IQC (incoming quality control) of a tactical clothing factory should check each of the following items when receiving trims:
5.1 YKK zipper inspection items
"YKK"on slider back is clear, three-dimensional, and burr-free
Slider is non‑magnetic (zinc alloy -not attracted to magnet)
Tape edges are hot‑cut, neat, no fraying
Zips smoothly for 20 cycles without catching
Salt spray test (24h) shows no red rust (test 1-2 pieces)
Packaging has genuine lot number / traceability code
5.2 Duraflex buckle inspection items
"Duraflex" lettering on back is clear
Spring arms of side‑release buckle press firmly and return quickly
Latching produces a "click"; play ≤0.5 mm when locked
No flash, burrs, or sink marks
5 kg load test (24h) shows no slip, no cracking (test 3-5 per batch)
Supplier provides distributor authorization certificate
5.3 Coats thread inspection items
Cone label is complete (Coats logo, model, Tex number)
Bonded thread surface is evenly matte
Random 1 m sample tied in a knot and pulled-does not break easily (or measured strength ≥35 N)
Quick sewing test of 200 m-thread breaks ≤1 time
Burn test produces burnt‑hair smell (nylon)
Traceability code can be verified online or by scanning
6. Common Counterfeit Tricks and How to Avoid Them
Tactical clothing factories should be especially alert to these four counterfeit tactics:
1. Mixed loads : 20-30% counterfeits mixed in a carton-genuine on the outside/top, fake inside.
Countermeasure: Open the carton and sample randomly from different positions-at least 5 zippers / 5 buckles / 5 thread cones.
2. Fake packaging: Highly counterfeit outer packaging and labels, but the product inside is fake.
Countermeasure: Scan traceability codes, check lot numbers. Genuine packaging has consistent fonts and colors per brand standards.
3. Price traps: Far below market average (e.g., YKK #5 metal zipper below 0.8 RMB/piece, Duraflex side-release buckle below 2 RMB/piece).
Countermeasure: Inquire with the brand official or tier-1 distributor for reference price. Reject abnormally low prices.
4. Claims of "factory surplus"or "parallel import" -no authorized channel.
Countermeasure: Demand an official brand authorization certificate, or contact the brand directly to verify the supplier's status.
7. Supplier Audit Recommendations
To completely eliminate counterfeit trims, tactical clothing factories should establish the following supplier management practices:
Qualification audit: Require the trim supplier to provide a brand authorization certificate(tier-1 or tier-2), verifiable on the brand's official website.
Batch traceability: Each batch must include original factory packing list or traceable batch number, plus the original factory Certificate of Analysis (COA).
Quality agreement: Include a "fake goods = tenfold compensation" clause in the purchase contract, and hold the supplier liable for all garment rework costs caused by trim issues.
Periodic third‑party testing: Every six months or per 10,000 pieces, send trim samples to an independent lab (e.g., zipper tensile strength, buckle impact resistance, thread breaking strength) and compare with supplier's reports.

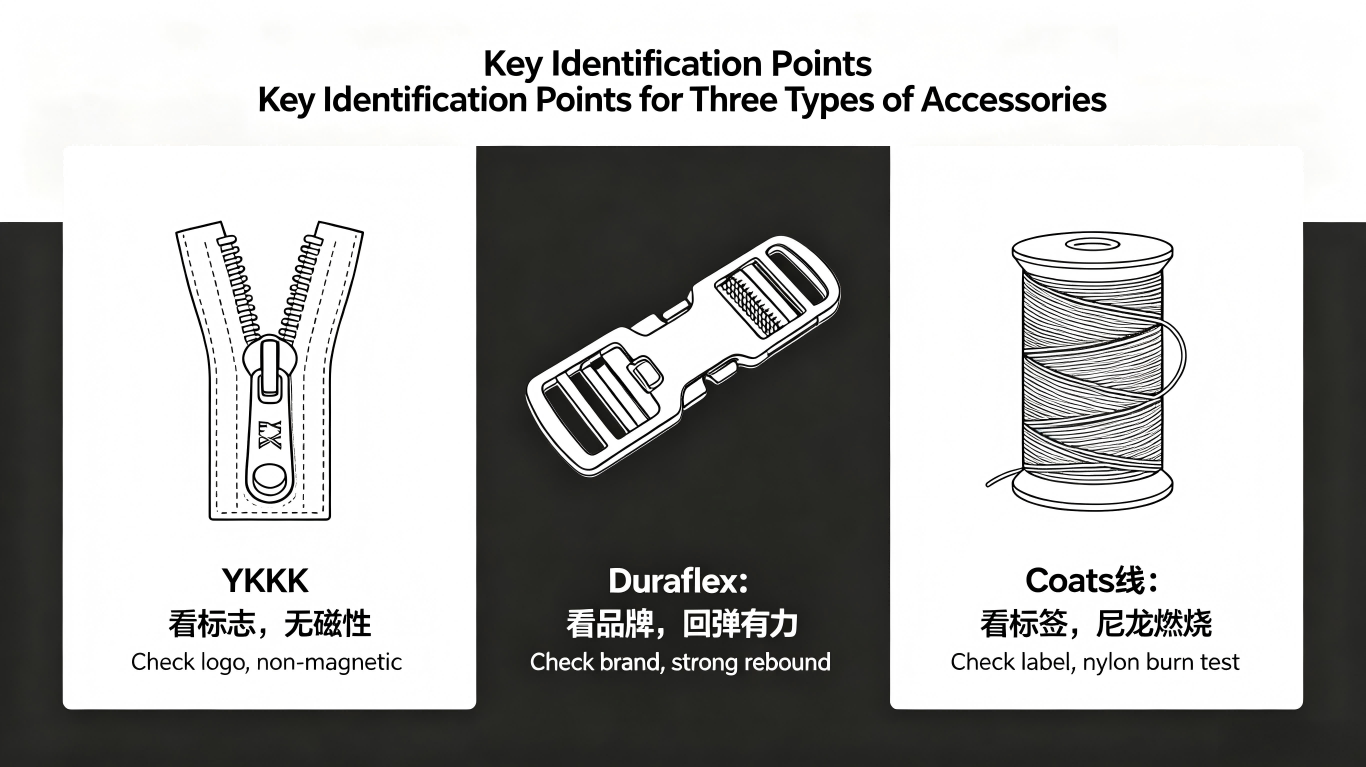

8. Conclusion & Quick Reference Card
Tactical Clothing Factory Trim Authenticity Quick Card
YKK zipper: Sharp "YKK" logo → non-magnetic slider → no rust after salt spray
Duraflex buckle: Find "Duraflex"→ spring arms snap back quickly → minimal play when locked
Coats thread: Genuine Coats label → matte bonded surface → burnt-hair smell → ≥35 N breaking strength
Final advice: Never risk purchasing from unauthorized channels to save a few cents per garment. When a batch rework happens, the loss is hundreds of times the trim cost difference. Integrate trim authenticity checks into your daily IQC process, and keep samples from each batch (at least 3 zippers, 5 buckles, and 1 thread cone) for future traceability.
